Configurations and updates

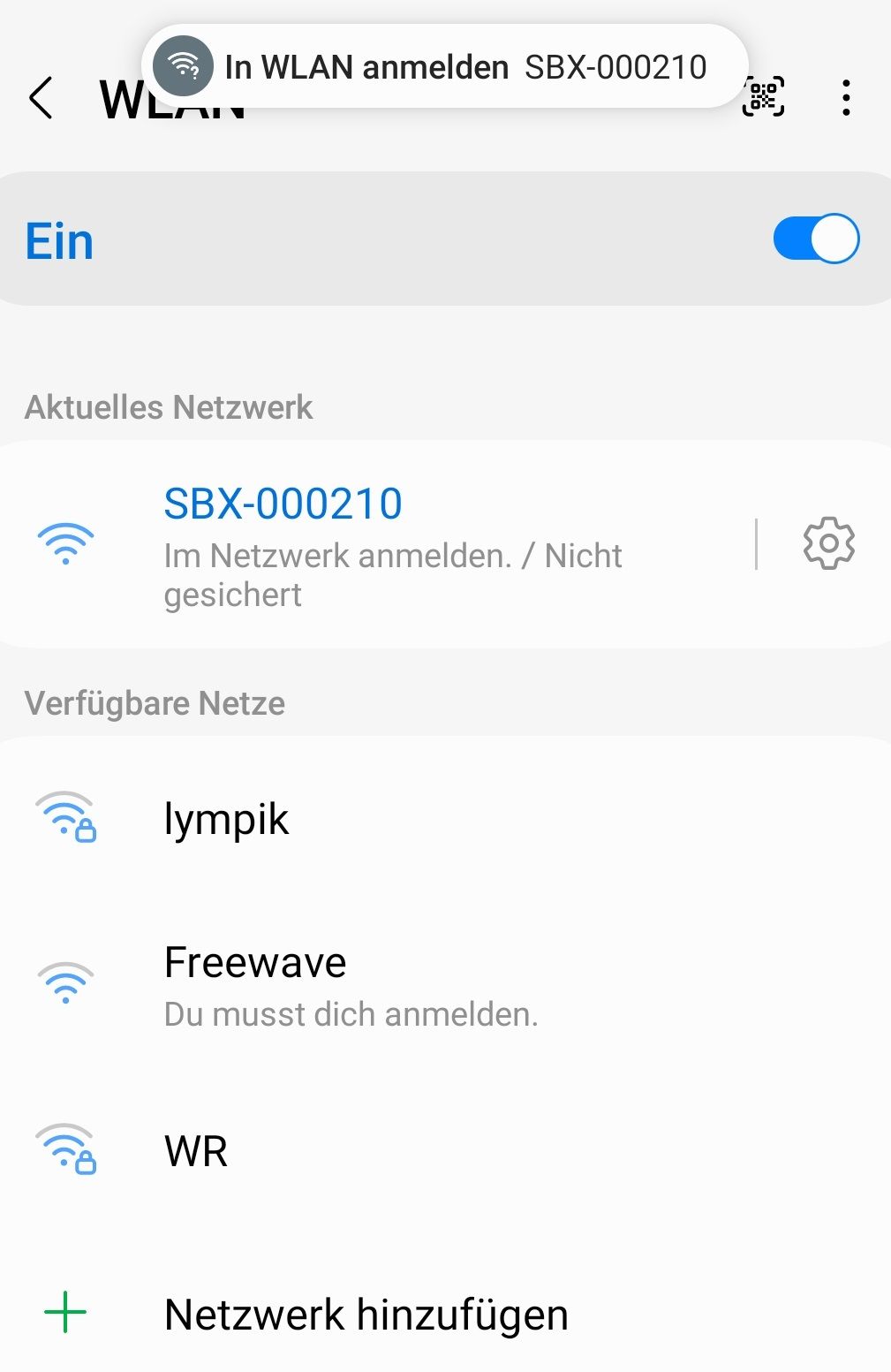

You can configure additional settings by connecting your smartphone or PC to the soundbox. To do this, switch on the soundbox and double-click the power button to enter configuration mode (Setup WiFi). The status LED will now light up blue continuously. Switch to your smartphone and navigate to the Wi-Fi settings. A network named 'SBX-serial number of the device' should now appear among the available networks.

image.alternativeText || 'Screenshot'

First, connect to the network, then click on the pop-up 'Log in to Wi-Fi'. You are now in configuration mode.

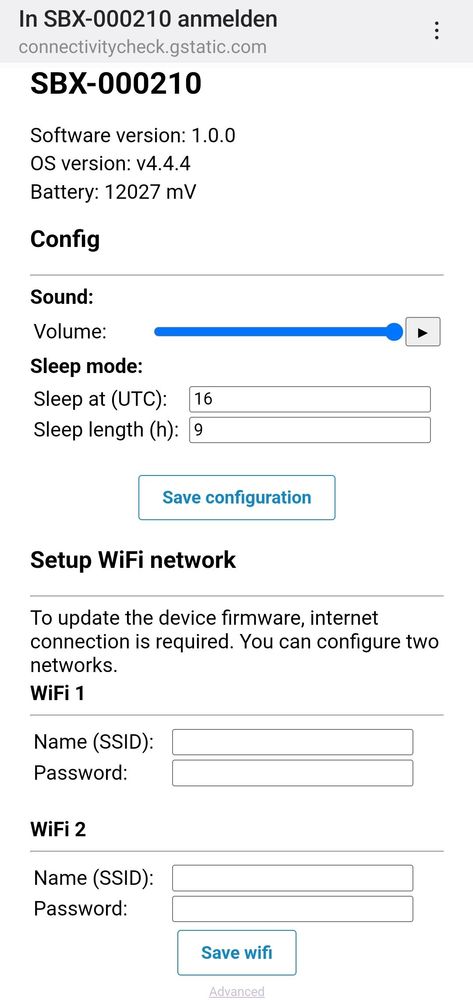

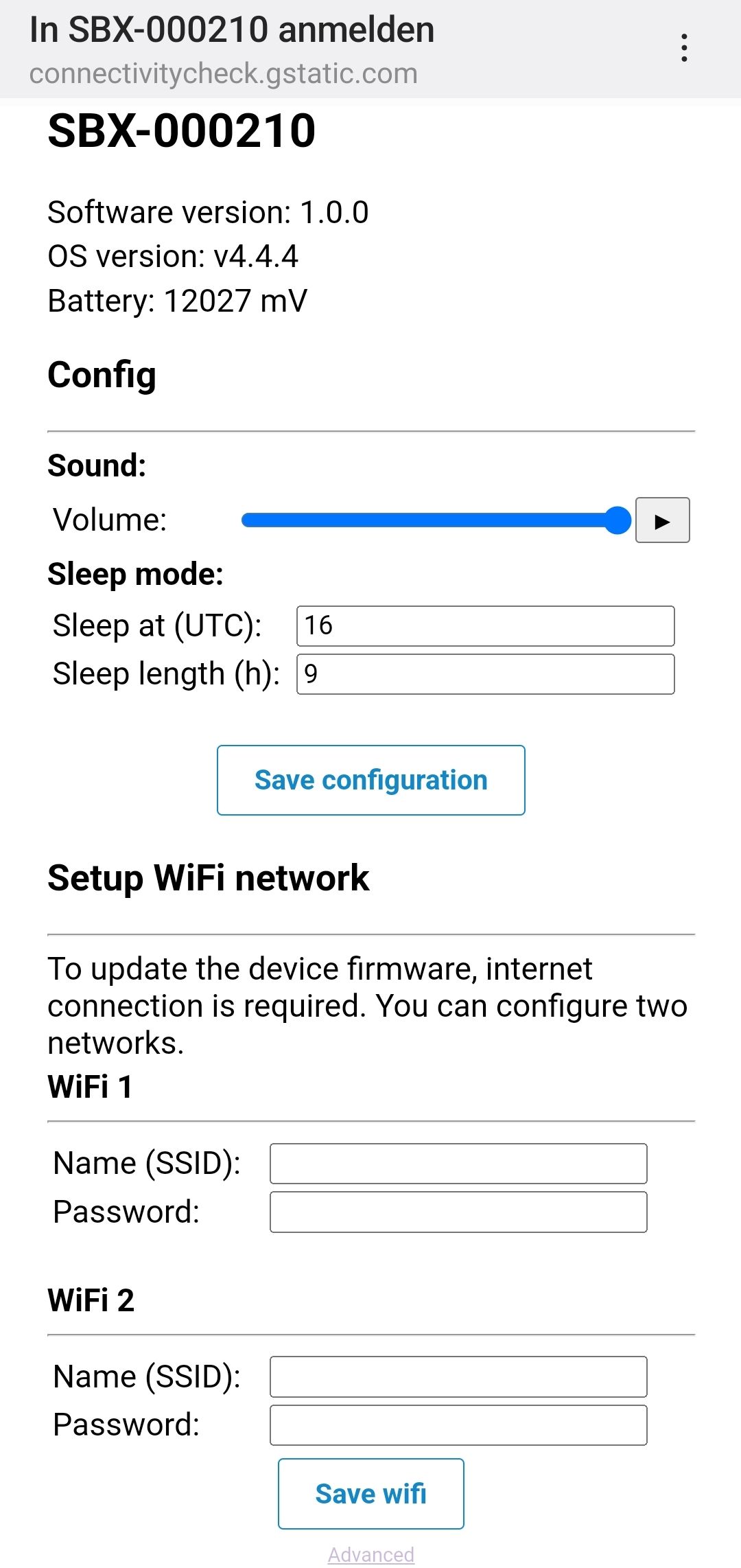

Configuration

The upper part of the configuration mode shows basic information such as the software and operating system versions as well as the battery level in millivolts. The volume of the soundbox can be adjusted and sleep mode can be configured in the field below. Sleep mode is active by default from 5 p.m. to 6 a.m., during which time no triggers are detected and no sound is played. This time period can be changed using the start time (Sleep at) and duration (Sleep length) settings.

Caution: The time must be set to UTC!

In the field below, you can enter a Wi-Fi network (e.g. your smartphone's hotspot) by entering its name and password. This network is used to update the software (see 'Advanced'). To enter Advanced Mode, click on 'Advanced' below 'Save Wi-Fi'. You are now in Advanced Mode, where you can configure additional settings.

image.alternativeText || 'Screenshot'

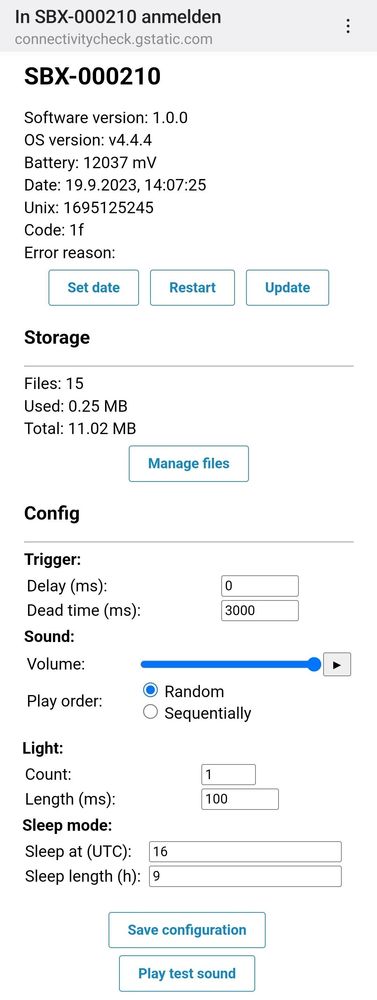

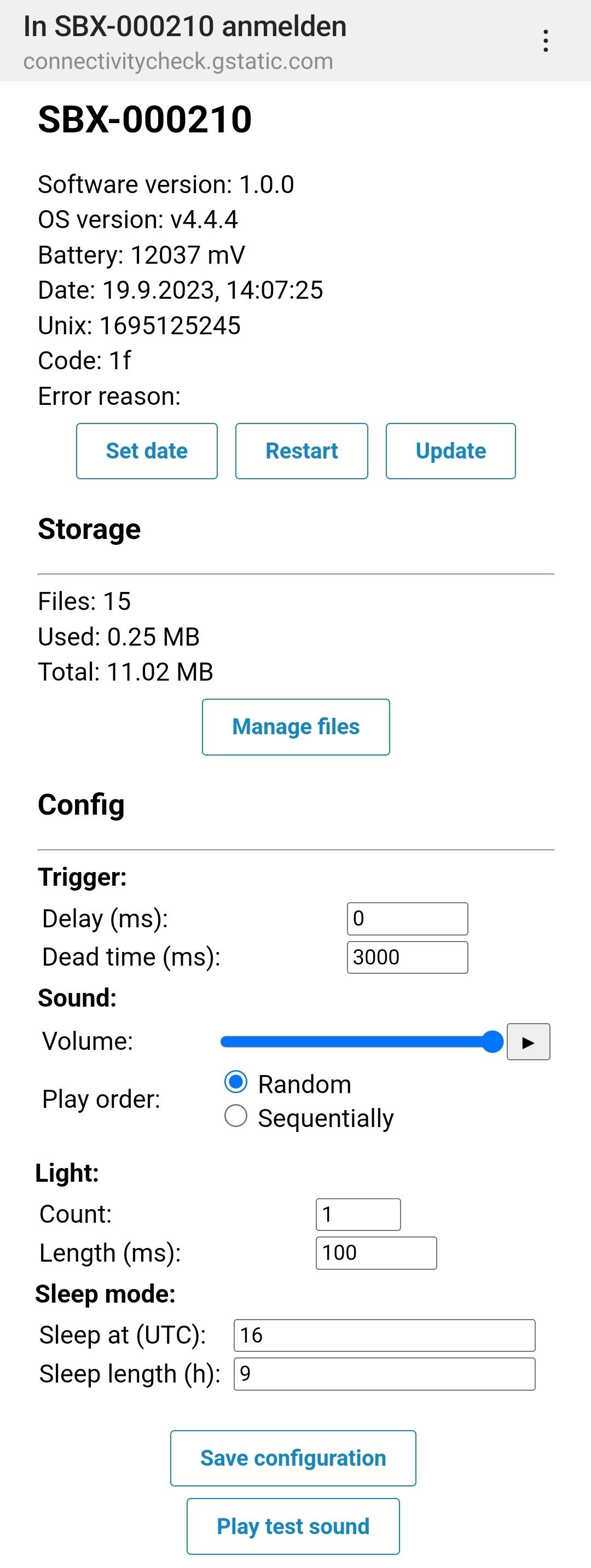

Advanced settings

In the top section of 'Advanced Mode', next to basic information (software and operating system versions, battery status), you can view the date, sequential code and, if applicable, an error cause. Use the 'Set date' button to reset the Soundbox clock.

Use the 'Restart' button to restart the device.

Pressing the “Update” button puts the Soundbox into “Update Mode”. The status LED will now light up in a brighter blue. To perform an update, Wi-Fi must be configured correctly in advance (see Configuration).

Sounds can be managed in the 'Storage' menu under 'Manage Files'.

Various trigger settings can be configured in the 'Config' menu:

  • Delay (ms): Time between sensor trigger and sound playback.
  • Dead time (ms): The minimum time between two triggers.
  • Volume: Soundbox volume.
  • Play order: Order of sounds (random or sequential).
  • Count: (Only relevant for the 'Slope Cop' variant): Number of strobe light flashes
  • Length (ms): (Only relevant for the 'Slope Cop' variant): Length of the flash in ms
  • Sleep mode: The time period during which triggers are deactivated (see also Configuration).
  • Playtest sound: Play test sound
image.alternativeText || 'Screenshot'
